Peel Ply is a fabric layer placed on the surface of a composite laminate which can be removed after curing of the composite to leave a textured surface on the surface of the laminate.
| Name | Specifcation Parameter | Weight | Base Materials | Coating | Maximum Use Temperature |
Applicable Characteristics |
Storage Life |

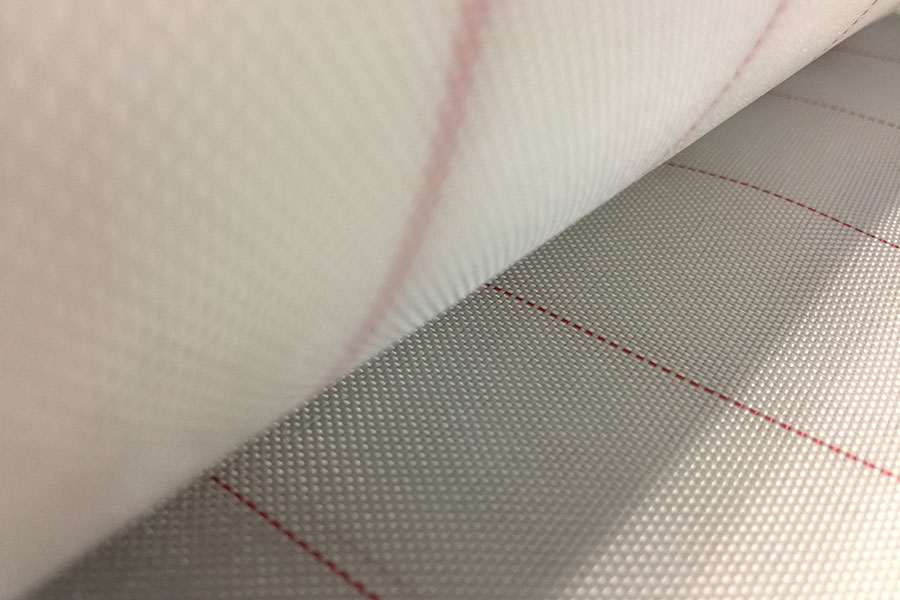

| PS100-85 | Width:70.87 inches(1.8m) Length:328feet(100m) |
90g/m² 2.420zly² |
PET | / | 356°F(180℃) | / | Two years |
| PS150-85 | Width:70.87 inches(1.8m) Length:328feet(100m) |
85g/m² 2.42ozly² |
PET&PA | / | 392°F(200℃) | 1 | Two years |
| NS230-85 | Width:70.87 inches(1.8m) Length:328feet(100m) |
85g/m² 2.42ozly |
PA66 | / | 428°F(220℃) | 1 | Two years |
| NS230-105 | Width:70.87 inches(1.8m) Length:328feet(100m) |
105g/m² 2.990zly² |
PA66 | / | 428°F(220℃) | / | Two years |
| NL230-60 | Width:59.1 inches(1.5m) Length:328feet(100m) |
62g/m² 1.710zly² |
PA66 | Si | 446°F(230℃) | Peels ofeasily | Two years |
| G234TFP-55 | Width:50inches(127m) Length:328 feet(100 m) Basematerial:30g/m² |
55g/m² 1.57ozly² |
Glass fiber | PTFE | 500°F(260℃) | Flexible | Two years |
| G234TFP-76 | Width:50inches(1.27m) Length:328 feet(100 m) Basematerial:50g/m² |
76g/m² 2.16ozly |
Glass fiber | PTFE | 500°F(260℃) | High air permeability |
Two years |
| G234TFP-150 | Width:50inches(1.27m) Length:328feet(100m) Basmaterial:105g/m² |
150g/m² 4.27ozy² |
Glass fiber | PTFE | 500°F(260℃) | High strength, coarsgrain |
Two years |

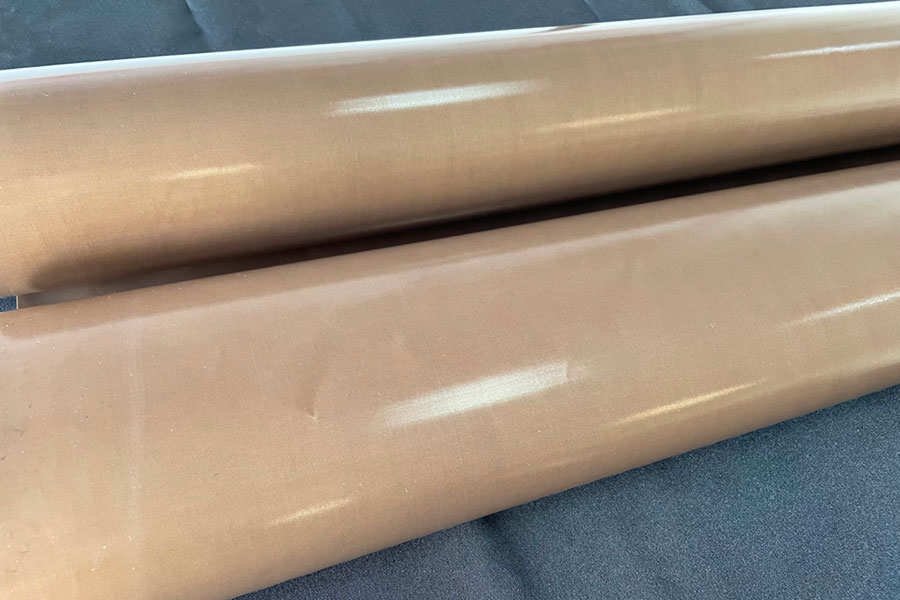

| G234TFNP-75 | Width:50 inches(1.27m) Length:328 feet(100 m) Basmaterial:30g/m² |
75g/m² 2.13oz/y² |
Glass fiber | PTFE | 500°F(260℃) | Airtight,Flexible | Two years |
| G234TENP.145 | Width:50 inches(1.27m) Length:328feet(100m) Basmaterial:50g/m² |
145g/m² 4.13ozly² |
Glass fiber | PTFE | 500°F(260℃) | Airtight | Two years |
| G234TFNP-260 | Width:50 inches(1.27m) Length:328.089 feet(100 m) Basematerial:105g/m² |
260g/m² 7.39ozly² |
Glass fiber | PTFE | 500°F(260℃) | Airtight,High strength |
Two years |
| FL400-125 | Width:50 inches(1.27m) Length:328feet(100m) |
300g/m² 3.26ozly² |
Glass fiber | Si | 752°F(400℃) | High temperature resistance |
Two years |
| FL400-300 | Width:50 inches(127m) Length:164feet(50m) |
300g/m² 8.54ozly² |
Glass fiber | Si | 752°F(400℃) | High temperature resistance |
Two years |
| GA005-013 | Thickness:0.005 inches(130μm) Width:39.37 inches(1m) Length:164feet(50m) |
/ | PTFE&Glass fiber |
Silica gel | 500°F(260℃) | No residual glue used repeatedly |
One year |
| GA005-018 | Thickness:0.007inches(180μm) Width:39.37inches(1m) Length:164feet(50m) |
/ | PTFE&Glass fiber |
Silica gel | 500°F(260℃) | Noresidual glue,high strength,used repeatedly |
One year |
| INCAM005 | Thickness:0.005 inches(130μm) Width:39.37 inches(1m) Length:164feet(50m) |
/ | PTFE&Glass fiber |
Silica gel | 500°F(260℃) | No residual glue used repeatedly |
One year |
Brand:Trigonox®
Chemical family:Organic peroxide
CAS number:75-91-2
Physical form:Liquid
Molecular Weight:90.1
Chemical name:tert-Butyl hydroperoxide, 70% solution in water
Brand:Perkadox®
Chemical family:Organic peroxide
CAS number:94-36-0
Physical form:Granular powder
Chemical name:Dibenzoyl peroxide
Brand:Perkadox®
Chemical family:Organic peroxide
CAS number:94-36-0
Physical form:Granular powder
Chemical name:Dibenzoyl peroxide
Brand:Polylite
Appearance:Transparent, water-white liquid with a bluish tint
Viscosity:0.75-1.25 25℃, Pa.S
Gel Time:5.6-10.4 25℃, min
Acid Value:18-26 mg KOH/g
Solid Content:64-70 %
Brand:Polylite
Appearance: Clear liquid,no visible mechanical impurity
Epoxy Equivalent (g/eq): 176–184
Color (Gardner): Max 1.0
Flash Point (℃): Above 150
Viscosity (cps, at 25℃): 8000–11000
Hydrolyzable Chlorine Content (ppm): Below 1000
Specific Gravity (g/cm³, 25℃): 1.16
Brand:Polylite
Appearance:Clear liquid,no visible mechanical impurity
Colour(Hazen):40 Max
Epoxy Equivalent(g/mol):210-230
Hydrolytic Chlorine (%):0.50 Max
Inorg.Cl （mg/kg）:50 Max
Volatile /150℃,40min(%):0.6 Max
Softening Point(℃):14-23
