Unitree 4D LiDAR

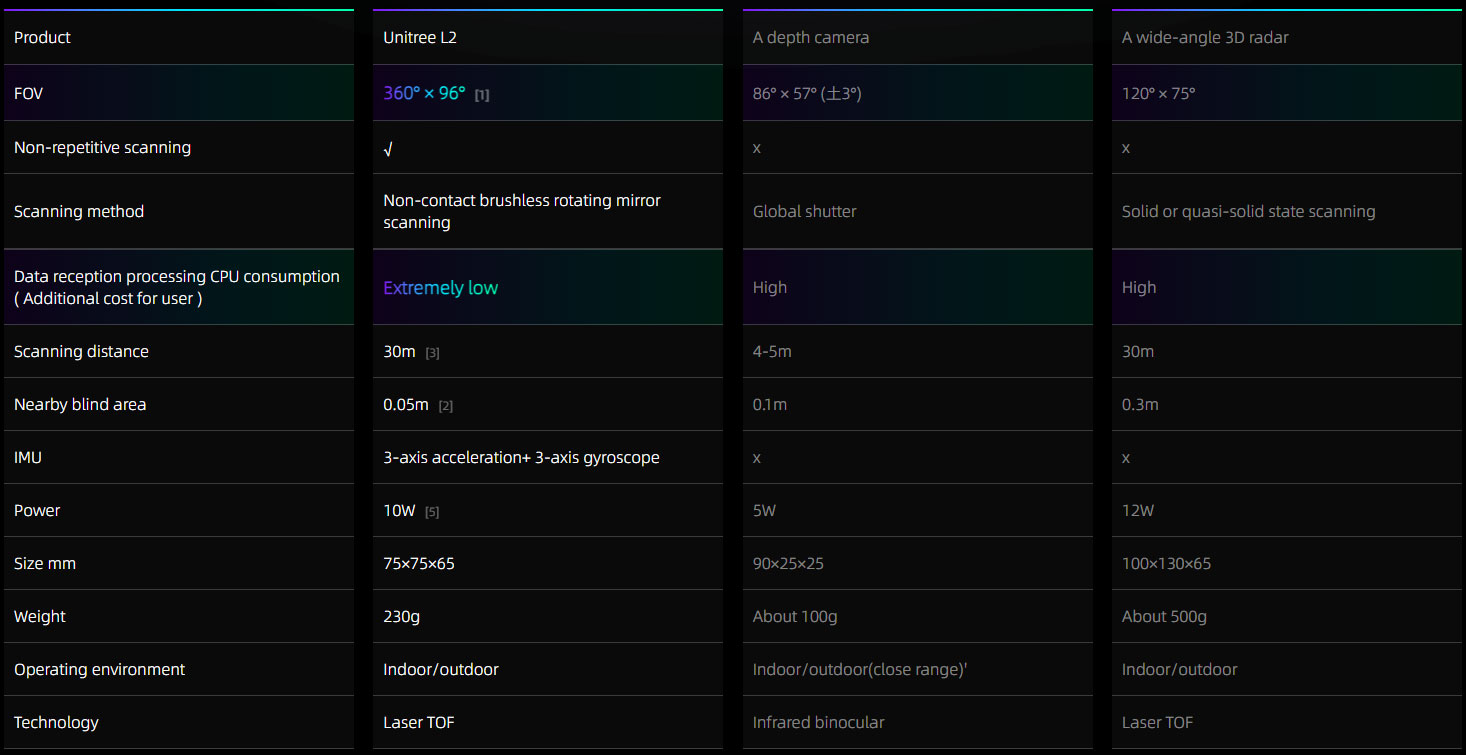

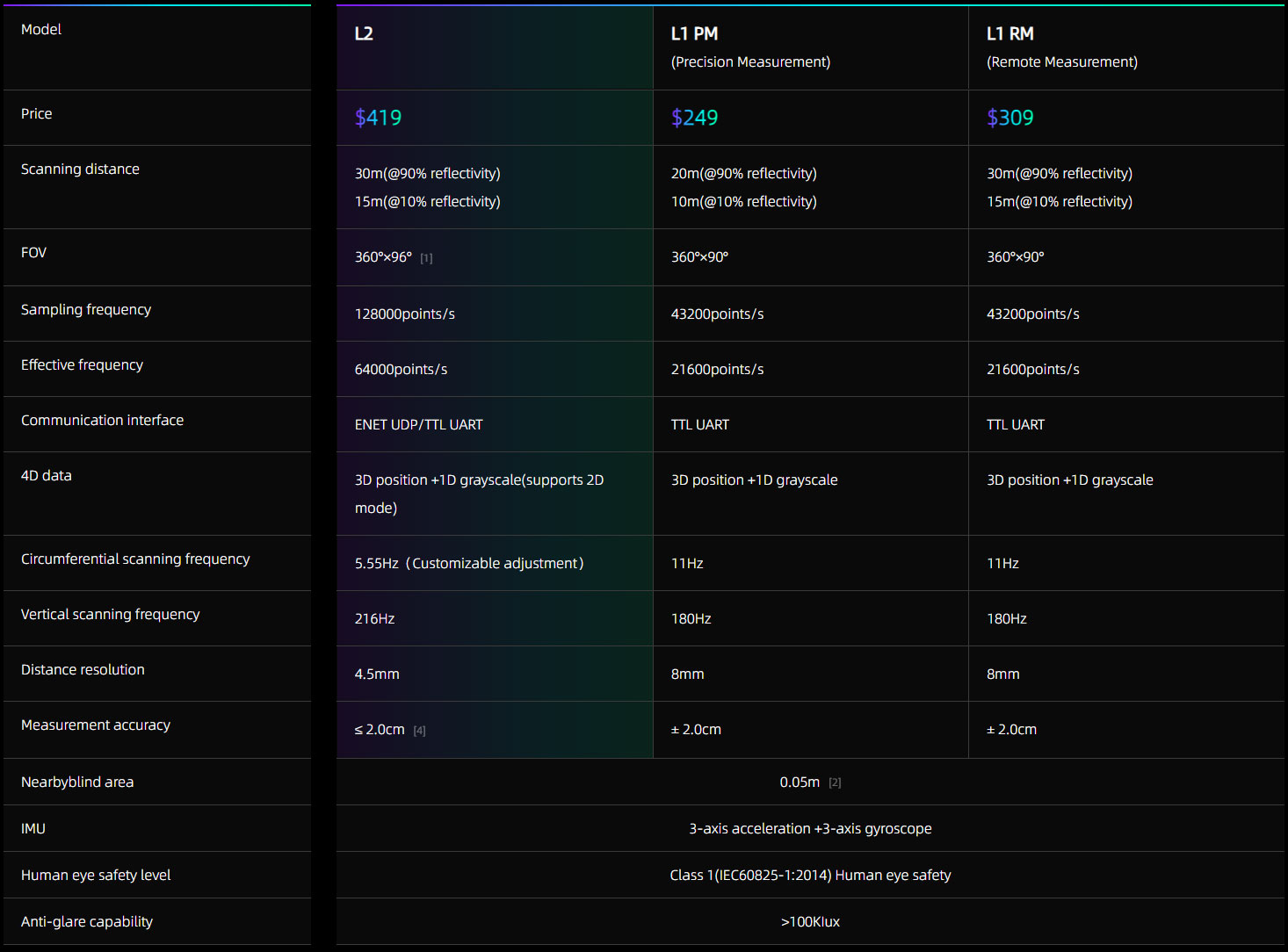

[1]L2 also supports negative angle mode, in which the field of view will be extended from 360°x90° to 360°x96°. The additional 6° of the field of view will have a slightly shorter maximum measurement distance.
[2]The values shown here are typical reflectance values, and the actual values depend on environmental conditions and the characteristics of the target object.
[3]To ensure effective detection of objects with different reflectance within the range, there may be a slight decrease in point cloud accuracy at certain positions. The farthest range is directly above the L2.
[4]To ensure effective detection of objects with different reflectance within the range, there may be a slight decrease in point cloud accuracy at certain positions.
[5]The stable power and peak power vary under different environmental conditions. When the ambient temperature is between -10°C and 30°C, L2 will automatically operate in a self-heating mode. Point cloud data will be generated only when the temperature meets the requirements, and at this time, the peak power can reach 13W. Please design the power supply reasonably to ensure the normal operation of the equipment.
[6]This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner. [7]Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations. * Note: The parameters mentioned above may vary in different business scenarios and with different LiDAR configurations. Please refer to the actual application for accuracy.
